a41y不锈钢安全阀的详细资料：
a41y不锈钢安全阀产品用途
不锈钢安全阀a41y整体材质选用优质不锈钢铸造而成，采用全封闭阀盖和阀帽结构，安全阀开启排放时，介质不会向外界泄漏，而全部通过排泄管排掉，又可防止灰尘等杂质进入阀内，适用于温度不高于200°c的腐蚀性气体和需要大排量的液体介质。上海申弘阀门有限公司是国内生产安全阀的主导厂，厂内建有远东*的安全阀测试中心，国产*台安全阀就是我厂诞生的，二十多年来，申弘牌安全阀的品种已发展到百余个系列，千余个规格，产品广泛应用于锅炉、石化、电站以及国防工业。并为国内*座核电站秦山核电站研制成功了*批核级安全阀。
安全阀是受压设备、容器或管路上的*超压保护装置。当设备压力升高达到预定值时，安全阀自动开启，继而全量排放，防止设备压力继续升高；当压力降低到规定值时，安全阀及时自动关闭。申弘牌安全阀是选用者为保护工程设备安全运行的的，zui科学的明智选择。所谓安全阀广义上讲包括泄放阀，从管理规则上看，直接安装在蒸汽锅炉或一类压力容器上，其必要条件是必须得到技术监督部门认可的阀门，狭义上称之为安全阀，其他一般称之为泄放阀。安全阀与泄放阀在结构和性能上很相似，二者都是在超过开启压力时自动排放内部的介质，以保证生产装置的安全。由干存在这种本质上类似性，人们在使用时，往往将二者混同，另外，有些生产装置在规则上也规定选用哪种均可。因此，二者的不同之处往往被忽视。从而也就出现了许多间题。如果要将二者作出比较明确的定义，则可按照《asme锅炉及压力容器规范》*篇中所阐述的定义来理解：
a41y不锈钢安全阀产品特点
- 全启式结构，排量大
- 阀瓣处设有反冲盘部件
- 平面结构的阀瓣和阀座易于维修和重新加工
- 整定压力偏差小，可达±3%
- 选用优质的弹簧钢，保证弹簧的寿命和稳定性
执行标准
设计规范：gb/t 12243
结构长度：gb/t 12221
法兰连接：jb/t 79
试验与检验：gb/t 12242
产品标识：gb/t 12220
供货规范：jb/t 7928

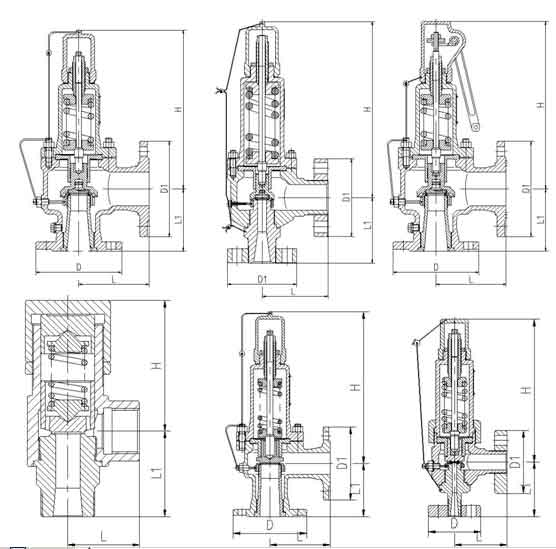

a41y不锈钢安全阀主要连接尺寸：
型 号 | 公称 | 主要结构尺寸（mm） | 阀体 材料 | 简要性能 | 备注 | ||||||
通径 dn（mm） | 压力 pn（mpa） | d | d1 | l | l1 | h | 适用温度 ℃ | 适用介质 | |||
a21w-16p | 15 | 1.6 |
|
| 35 | 60 | 64 | 1cr18ni9ti | ≤200 | 醋酸类 |
|
" | 20 | " |
|
| 40 | 68 | 68 | " | " | " |
|
" | 25 | " |
|
| 50 | 78 | 105 | " | " | " |
|
a21w-25p | 15 | 2.5 |
|
| 35 | 60 | 64 | 1cr18ni9ti | " | " |
|
" | 20 | " |
|
| 40 | 68 | 68 | " | " | " |
|
" | 25 | " |
|
| 50 | 78 | 105 | " | " | " |
|
a21w-40p | 15 | 4.0 |
|
| 35 | 60 | 64 | " | " | " |
|
" | 20 | " |
|
| 40 | 68 | 68 | " | " | " |
|
" | 25 | " |
|
| 50 | 78 | 105 | " | " | " |
|
a41y-16p | 32 | 1.6 | 135 | 135 | 115 | 100 | 266 | 1cr18ni9ti | ≤200 | 醋酸类 |
|
" | 40 | " | 145 | 145 | 120 | 105 | 318 | " | " | " |
|
" | 50 | " | 160 | 160 | 130 | 115 | 350 | " | " | " |
|
" | 65 | " |
|
|
|
|
| " | " | " |
|
" | 80 | " | 195 | 195 | 160 | 135 | 385 | " | " | " |
|
" | 100 | " | 215 | 215 | 170 | 160 | 525 | " | " | " |
|
" | 150 | " |
|
|
|
|
| " | " | " |
|
" | 200 | " |
|
|
|
|
| " | " | " |
|
a41y-25p | 32 | 2.5 | 135 | 135 | 115 | 100 | 266 | 1cr18ni9ti | ≤200 | 醋酸类 |
|
" | 40 | " | 145 | 145 | 120 | 105 | 318 | " | " | " |
|
" | 50 | " | 160 | 160 | 130 | 115 | 340 | " | " | " |
|
" | 65 | " |
|
|
|
|
| " | " | " |
|
" | 80 | " | 195 | 195 | 160 | 135 | 565 | " | " | " |
|
" | 100 | " | 230 | 215 | 170 | 160 | 580 | " | " | " |
|
a41y-40p | 32 | 4.0 | 135 | 135 | 115 | 100 | 266 | 1cr18ni9ti | ≤200 | 醋酸类 |
|
" | 40 | " | 145 | 145 | 120 | 105 | 318 | " | " | " |
|
" | 50 | " | 160 | 160 | 130 | 115 | 340 | " | " | " |
|
" | 65 | " |
|
|
|
|
| " | " | " |
|
" | 80 | " | 195 | 195 | 160 | 135 | 565 | " | " | " |
|
" | 100 | " |
|
|
|
|
| " | " | " |
|
a41y-16r | 32 | 1.6 | 135 | 135 | 115 | 100 | 260 | ocr18ni12mo2ti | ≤200 | 醋酸类 |
|
" | 40 | " | 145 | 145 | 120 | 105 | 318 | " | " | " |
|
" | 50 | " | 160 | 160 | 130 | 115 | 350 | " | " | " |
|
" | 65 | " |
|
|
|
|
| " | " | " |
|
" | 80 | " | 195 | 195 | 160 | 135 | 385 | " | " | " |
|
" | 100 | " | 215 | 215 | 170 | 160 | 525 | " | " | " |
|
" | 150 | " |
|
|
|
|
| " | " | " |
|
" | 200 | " |
|
|
|
|
| " | " | " |
|
a41y-25r | 32 | 2.5 | 135 | 135 | 115 | 100 | 266 | ocr18ni12mo2ti | ≤200 | 醋酸类 |
|
" | 40 | " | 145 | 145 | 120 | 105 | 318 | " | " | " |
|
" | 50 | " | 160 | 160 | 130 | 115 | 350 | " | " | " |
|
" | 65 | " |
|
|
|
|
| " | " | " |
|
" | 80 | " | 195 | 195 | 160 | 135 | 570 | " | " | " |
|
" | 100 | " | 230 | 215 | 170 | 160 | 580 | " | " | " |
|
" | 150 | " |
|
|
|
|
|
|
|
|
|
a41y-40r | 32 | 4.0 | 135 | 135 | 115 | 100 | 266 | ocr18ni12mo2ti | ≤200 | 醋酸类 |
|
" | 40 | " | 150 | 150 | 120 | 110 | 320 | " | " | " |
|
" | 50 | " | 165 | 165 | 135 | 120 | 340 | " | " | " |
|
" | 65 | " |
|
|
|
|
| " | " | " |
|
" | 80 | " | 195 | 195 | 160 | 135 | 570 | " | " | " |
|
" | 100 | " |
|
|
|
|
| " | " | " |
|
" | 150 | " |
|
|
|
|
| " | " | " |
|
sa41h-16p | 25 | 1.6 | 115 | 45 | 55 | 85 | 200 | 1cr18ni9ti | ≤200 | 醋酸类 |
|
sa41h-25p | 25 | 2.5 | 115 | 45 | 55 | 85 | 200 | 1cr18ni9ti | ≤200 | 醋酸类 |
|
sa41h-40p | 25 | 4.0 | 115 | 45 | 55 | 85 | 200 | 1cr18ni9ti | ≤200 | 醋酸类 |
|
sa41h-64p | 25 | 6.4 | 135 | 45 | 55 | 85 | 200 | 1cr18ni9ti | ≤200 | 醋酸类 |
|
sa41y-160p | 15 | 16.0 | 95 | 115 | 95 | 100 | 238 | 1cr18ni9ti | ≤200 | 醋酸类 |
|
" | 20 | " |
|
|
|
|
|
|
|
|
|
" | 25 | " |
|
|
|
|
|
|
|
|
|
" | 32 | " | 115 | 165 | 165 | 135 | 310 | " | " | " |
|
sa41y-320p | 15 | 32.0 | 105 | 115 | 95 | 100 | 238 | 1cr18ni9ti | ≤200 | 醋酸类 |
|
" | 20 | " | 110 | 115 | 95 | 100 | 238 | " | " | " |
|
" | 25 | " |
|
|
|
|
| " | " | " |
|
" | 32 | " | 135 | 165 | 130 | 135 | 334 | " | " | " |
|
sa41y-500p | 15 | 50.0 | 105 | 115 | 95 | 100 | 222 | 1cr18ni9ti | ≤200 | 醋酸类 |
|
a42y-16p | 25 | 1.6 |
|
|
|
| 230 | 1cr18ni9ti | ≤200 | 醋酸类 |
|
" | 32 | " | 135 | 145 | 115 | 100 | 285 | " | " | " |
|
" | 40 | " | 150 | 160 | 120 | 110 | 278 | " | " | " |
|
" | 50 | " | 165 | 180 | 135 | 120 | 323 | " | " | " |
|
" | 65 | " |
|
|
|
|
| " | " | " |
|
" | 80 | " | 200 | 215 | 170 | 135 | 478 | " | " | " |
|
" | 100 | " | 220 | 245 | 205 | 160 | 590 | " | " | " |
|
" | 150 | " | 280 | 310 | 255 | 230 | 650 | " | " | " |
|
" | 200 | " |
|
|
|
|
| " | " | " |
|
a42y-40p | 32 | 4.0 | 140 | 150 | 115 | 100 | 285 | 1cr18ni9ti | ≤200 | 醋酸类 |
|
" | 40 | " | 145 | 160 | 130 | 115 | 278 | " | " | " |
|
" | 50 | " | 160 | 180 | 145 | 130 | 332 | " | " | " |
|
" | 65 | " |
|
|
|
|
| " | " | " |
|
" | 80 | " | 195 | 215 | 170 | 150 | 478 | " | " | " |
|
" | 100 | " | 230 | 245 | 205 | 185 | 590 | " | " | " |
|
" | 150 | " | 300 | 310 | 255 | 230 | 650 | " | " | " |
|
" | 200 | " |
|
|
|
|
| " | " | " |
|
a42y-64p | 32 | 6.4 |
|
|
|
|
| 1cr18ni9ti | ≤200 | 醋酸类 |
|
" | 40 | " | 165 | 160 | 130 | 120 | 305 | " | " | " |
|
" | 50 | " | 175 | 180 | 155 | 130 | 462 | " | " | " |
|
" | 65 | " |
|
|
|
|
| " | " | " |
|
" | 80 | " | 210 | 230 | 175 | 160 | 582 | " | " | " |
|
" | 100 | " | 250 | 270 | 195 | 195 | 600 | " | " | " |
|
a42y-100p | 32 | 10.0 |
|
|
|
|
| 1cr18ni9ti | ≤200 | 醋酸类 |
|
" | 40 | " |
|
|
|
|
| " | " | " |
|
" | 50 | " |
|
|
|
|
| " | " | " |
|
" | 65 | " |
|
|
|
|
| " | " | " |
|
" | 80 | " |
|
|
|
|
| " | " | " |
|
" | 100 | " |
|
|
|
|
| " | " | " |
|
a42y-16r | 25 | 1.6 |
|
|
|
|
| ocr18ni12mo2ti | ≤200 | 醋酸类 |
|
" | 32 | " | 135 | 145 | 115 | 100 | 265 | " | " | " |
|
" | 40 | " | 150 | 160 | 120 | 110 | 278 | " | " | " |
|
" | 50 | " | 165 | 180 | 135 | 120 | 332 | " | " | " |
|
" | 65 | " |
|
|
|
|
| " | " | " |
|
" | 80 | " | 200 | 215 | 170 | 135 | 478 | " | " | " |
|
" | 100 | " | 220 | 245 | 205 | 160 | 590 | " | " | " |
|
" | 150 | " | 280 | 310 | 255 | 230 | 650 | " | " | " |
|
" | 200 | " |
|
|
|
|
| " | " | " |
|
a42y-40r | 32 | 4.0 | 140 | 150 | 115 | 100 | 260 | ocr18ni12mo2ti | ≤200 | 醋酸类 |
|
" | 40 | " | 145 | 160 | 130 | 120 | 278 | " | " | " |
|
" | 50 | " | 160 | 180 | 145 | 130 | 332 | " | " | " |
|
" | 65 | " |
|
|
|
|
| " | " | " |
|
" | 80 | " | 195 | 215 | 170 | 150 | 478 | " | " | " |
|
" | 100 | " | 230 | 245 | 205 | 185 | 590 | " | " | " |
|
" | 150 | " | 300 | 310 | 255 | 230 | 650 | " | " | " |
|
" | 200 | " |
|
|
|
|
| " | " | " |
|
a42y-64r | 32 | 6.4 |
|
|
|
|
| ocr18ni12mo2ti | ≤200 | 醋酸类 |
|
" | 40 | " | 165 | 160 | 130 | 120 | 308 | " | " | " |
|
" | 50 | " | 175 | 180 | 155 | 130 | 464 | " | " | " |
|
" | 65 | " |
|
|
|
|
| " | " | " |
|
" | 80 | " | 210 | 230 | 175 | 160 | 582 | " | " | " |
|
" | 100 | " | 250 | 270 | 195 | 195 | 600 | " | " | " |
|
a42y-100r | 32 | 10.0 |
|
|
|
|
| ocr18ni12mo2ti | ≤200 | 醋酸类 |
|
" | 40 | " |
|
|
|
|
| " | " | " |
|
" | 50 | " |
|
|
|
|
| " | " | " |
|
" | 65 | " |
|
|
|
|
| " | " | " |
|
" | 80 | " |
|
|
|
|
| " | " | " |
|
" | 100 | " |
|
|
|
|
| " | " | " |
|
a44y-16p | 32 | 1.6 |
|
|
|
|
| 1cr18ni9ti | ≤200 | 醋酸类 |
|
" | 40 | " | 150 | 165 | 120 | 110 | 314 | " | " | " |
|
" | 50 | " | 165 | 185 | 135 | 120 | 375 | " | " | " |
|
" | 65 | " |
|
|
|
|
| " | " | " |
|
" | 80 | " | 200 | 220 | 170 | 135 | 538 | " | " | " |
|
" | 100 | " | 215 | 245 | 205 | 185 | 655 | " | " | " |
|
" | 150 | " | 280 | 310 | 255 | 230 | 740 | " | " | " |
|
" | 200 | " |
|
|
|
|
| " | " | " |
|
a44y-40p | 32 | 4.0 |
|
|
|
|
| 1cr18ni9ti | ≤200 | 醋酸类 |
|
" | 40 | " | 145 | 165 | 130 | 120 | 314 | " | " | " |
|
" | 50 | " | 160 | 180 | 145 | 130 | 376 | " | " | " |
|
" | 65 | " |
|
|
|
|
| " | " | " |
|
" | 80 | " | 190 | 215 | 170 | 150 | 538 | " | " | " |
|
" | 100 | " | 250 | 245 | 205 | 185 | 655 | " | " | " |
|
" | 150 | " | 300 | 310 | 255 | 230 | 740 | " | " | " |
|
" | 200 | " |
|
|
|
|
| " | " | " |
|
a44y-64p | 32 | 6.4 |
|
|
|
|
| 1cr18ni9ti | ≤200 | 醋酸类 |
|
" | 40 | " |
|
|
|
|
| " | " | " |
|
" | 50 | " | 175 | 180 | 155 | 130 | 520 | " | " | " |
|
" | 65 | " |
|
|
|
|
| " | " | " |
|
" | 80 | " | 210 | 230 | 185 | 160 | 810 | " | " | " |
|
" | 100 | " | 250 | 270 | 195 | 195 | 890 | " | " | " |
|
a44y-100p | 32 | 10.0 |
|
|
|
|
| 1cr18ni9ti | ≤200 | 醋酸类 |
|
" | 40 | " |
|
|
|
|
| " | " | " |
|
" | 50 | " | 195 | 180 | 155 | 130 | 520 | " | " | " |
|
" | 65 | " |
|
|
|
|
| " | " | " |
|
" | 80 | " | 230 | 230 | 175 | 160 | 815 | " | " | " |
|
" | 100 | " | 265 | 270 | 220 | 210 | 680 | " |
a41y不锈钢安全阀各种工况下使用寿命安全阀比较合理：
（l）热水锅炉一般用不封闭带扳手微启式安全阀。
（2）蒸汽锅炉或蒸汽管道一般用不封闭带扳手全启式安全阀。
（3）水等液体不可压缩介质一般用封闭微启式安全阀，或用安全泄放阀。
（4）高压给水一般用封闭全启式安全阀，如高压给水加热器、换热器等。
（5）气体等可压缩性介质一般用封闭全启式安全阀，如储气罐、气体管道等。
（6）e级蒸汽锅炉一般用静重式安全阀。
（7）大口径，大排量及高压系统一般用脉冲式安全阀，如减温减压装置、电站锅炉等，如图8所示。
（8）运送液化气的火车槽车、汽车槽车、贮罐等一般用内装式安全阀，如图4所示。
（9）油罐顶部一般用液压安全阀，需与呼吸阀配合使用。
（10）井下排水或天然气管道一般用先导式安全阀，如图6所示。
（11）液化石油气站罐泵出口的液相回流管道上一般用安全回流阀。
（12）负压或操作过程中可能会产生负压的系统一般用真空负压安全阀。
（13）背压波动较大和有毒易燃的容器或管路系统一般用波纹管安全阀。
订货须知：
一、①产品名称与型号②口径③是否带附件以便我们的为您正确选型④使用压力⑤使用介质的温度。
二、若已经由设计单位选定公司的安全阀型号，请型号直接向我司销售部订购。
三、当使用的场合非常重要或环境比较复杂时,请您尽量提供设计图纸和详细参数，由我们的阀门公司专家为您审核把关。如有疑问：请：我们一定会尽心尽力为您提供优质的服务。提供zui全面、专业的“阀门系统ag亚博国际的解决方案”，也十分愿意帮助用户解决生产中所遇到的难题。
